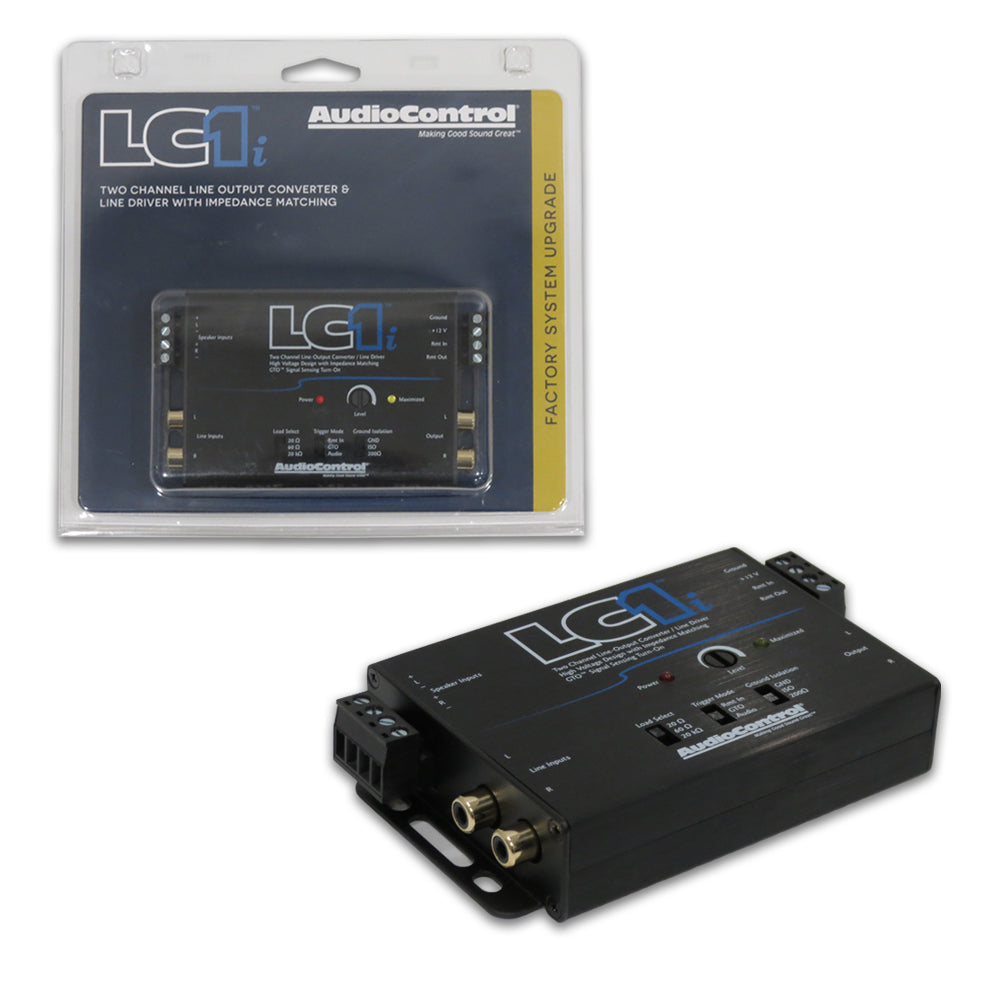

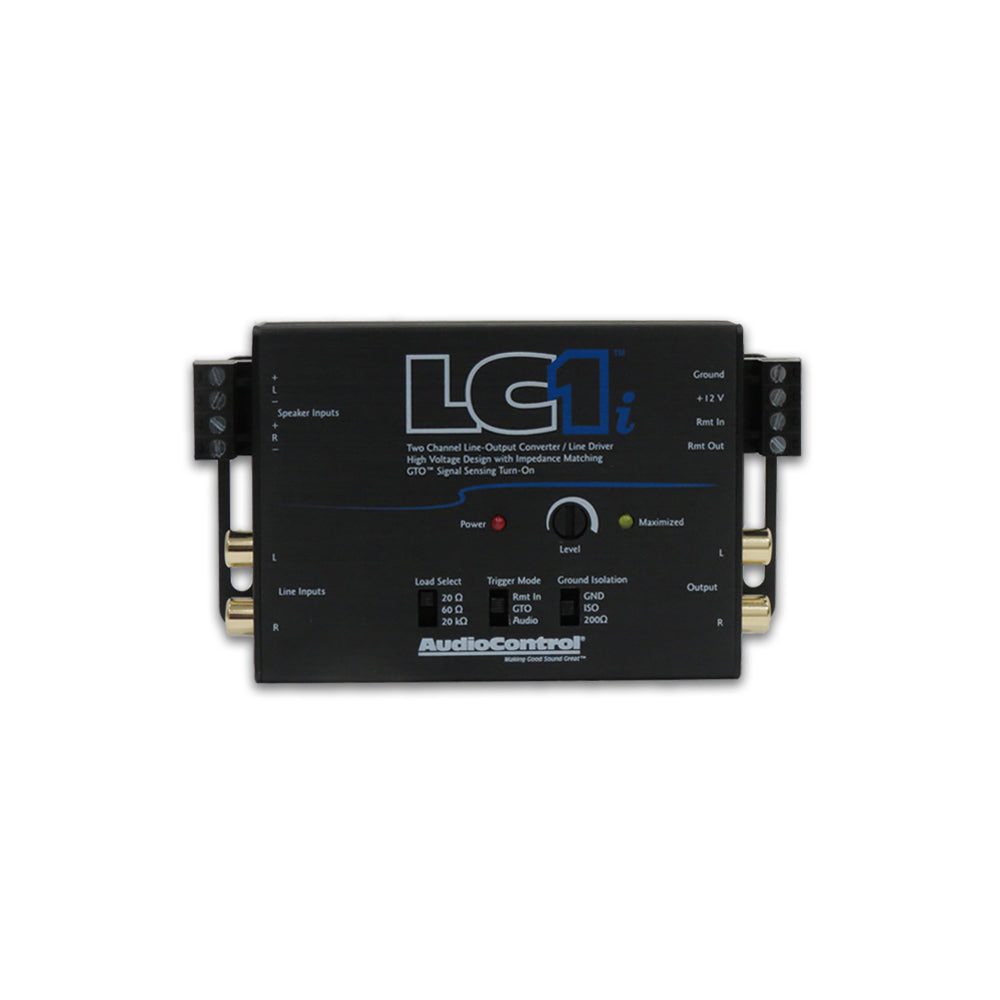

AUDIOCONTROL LC1i 2 CHANNEL LINE OUTPUT CONVERTER AND LINE DRIVER
AudioControl
- Car Audio 2-Channel Line Output Converter and Line Driver with Impedance Matching
- Model: LC1i
- Two channels of active speaker level inputs (up to 40V input handling)
- Two channels of line level inputs
- GTO™ Signal Sensing
- Power Status LED
- Load Selection Switch
- Trigger Mode Switch
- Ground Isolation Switch
- Output level Knob
- Maximized LED
- Line Level Outputs
- Power Connector (Lc1i Requires Constant +12V Power)
- Compact design
- Inputs
- Speaker Level Input: 1 (2 channels)
- Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
- Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
- Line Level Input: 1 (2 channels)
- Line Level Input Impedance: 7kΩ
- Outputs
- Preamp Outputs: 1 (2 channels)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Gain: +/- 12 dB
- Output Impedance: 150Ω
- Performance
- Total Harmonic Distortion: 0.01%
- Signal to Noise: >110 dB
- Frequency Response: 20 Hz – 50 kHz ±1 dB
- Control
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
- General
- Current Draw: 120 mA
- Recommended Fuse Rating: 1 A
- Weights & Dimensions
- Dimensions: 4.8″L x 3″D x 1″H (including speaker connectors)
- Weight: 0.55 lbs. (0.25 kg)
