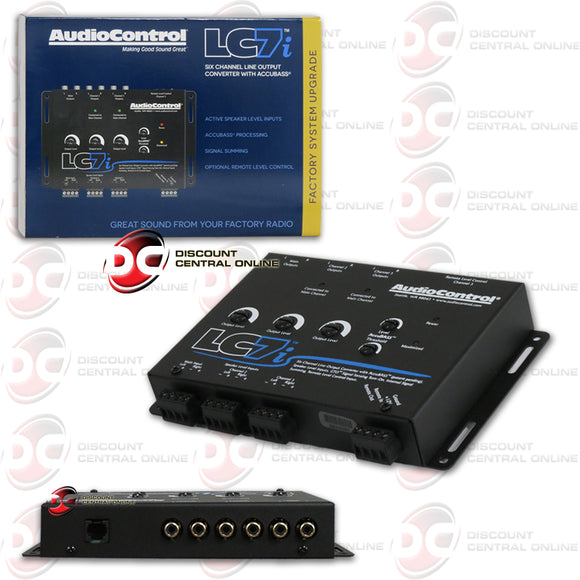

AUDIOCONTROL LC7i BLACK 6 CHANNEL LINE OUTPUT CONVERTER WITH ACCUBASS

AUDIOCONTROL LC7i BLACK 6 CHANNEL LINE OUTPUT CONVERTER WITH ACCUBASS

AudioControl

  • $ 189.99
    Unit price per

Only 1 left!

  • Car Audio 6-Channel Line Output Converter with ACCUBASS (Black)
  • Model: LC7i
  • 6-channel line output converter plus bass restoration
  • 6 speaker-level inputs (each can handle up to 400 watts RMS)
  • Internal Channel Summing – For interfacing with factory installed amplifiers with built-in crossovers
  • AccuBASS™ bass restoration circuitry
  • 6 preamp outputs (up to 8.5 volts RMS)
  • level matching controls with Maximized Indicator LED
  • Optional ACR-1 Remote allows for user control of the subwoofer level
  • GTO™ (Great Turn-On) Circuit – Powers up the LC7i when it detects signal on the speaker level input
  • Output level control
  • Compact chassis allowing for ease of installation
  • Inputs
    • Speaker Level Inputs: 3 (6 channels)
    • Maximum Input (speaker level): 400W per channel at 4Ω
    • Input Impedance: 20kΩ
  • Outputs
    • Preamp Outputs: 3 (6 channels)
    • Maximum Output Level: 8.5Vrms
    • Output Gain: ±12dB
    • Output Impedance: 150Ω
  • Performance
    • Total Harmonic Distortion: 0.01%
    • Frequency Response: 10Hz-22kHz
  • Control
    • Remote In - Optional ACR-1 Remote allows for user control of the subwoofer level
    • 12VDC Remote Out (always active when unit is on)
  • General
    • Power Supply: High Headroom PWM Switching
    • Current Draw: 350mA
    • Recommended Fuse Rating: 2A
  • Weights & dimensions
    • Dimensions: 7.5”W x 4.7”D x 1.2”H
    • Weight: 1.5 lbs (0.7 kg)
