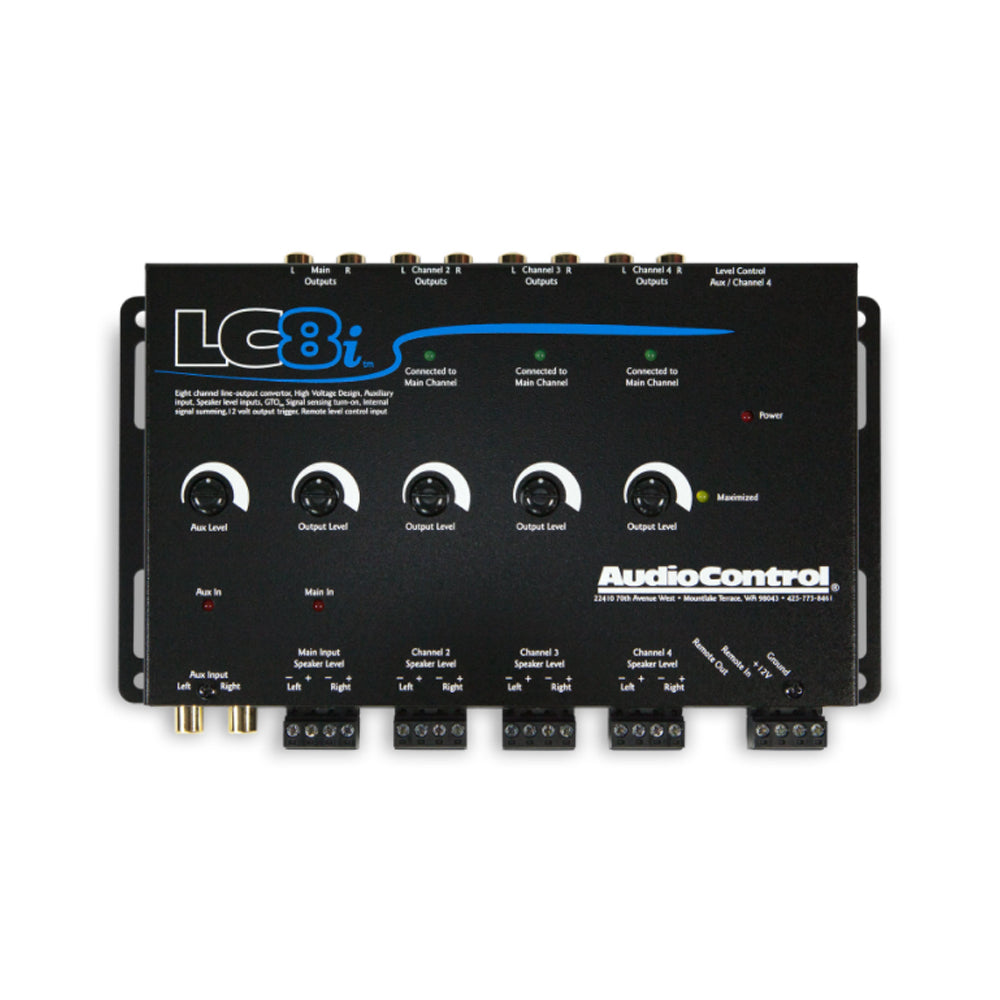

AUDIOCONTROL LC8i BLACK 8 CHANNEL LINE OUTPUT CONVERTER WITH AUX INPUT
AUDIOCONTROL LC8i BLACK 8 CHANNEL LINE OUTPUT CONVERTER WITH AUX INPUT
AUDIOCONTROL LC8i BLACK 8 CHANNEL LINE OUTPUT CONVERTER WITH AUX INPUT
AUDIOCONTROL LC8i BLACK 8 CHANNEL LINE OUTPUT CONVERTER WITH AUX INPUT
AUDIOCONTROL LC8i BLACK 8 CHANNEL LINE OUTPUT CONVERTER WITH AUX INPUT

AUDIOCONTROL LC8i BLACK 8 CHANNEL LINE OUTPUT CONVERTER WITH AUX INPUT

AudioControl

Only 1 left!
  • Car Audio 8-Channel Line Output Converter with AUX Input (Black)
  • Model: LC8i
  • 8-channel line output converter with auxiliary input
  • 8 speaker-level inputs (each can handle up to 400 watts RMS)
  • Internal channel summing
  • 1 pair RCA auxiliary inputs
  • 8 preamp outputs (up to 8.5 volts RMS)
  • Level matching controls with Maximized Indicator LED
  • Multi-function dash control (included) allows for Source Selection, Auxiliary Input Volume plus Subwoofer Level Control
  • Selectable GTO™ Signal-sensing Turn-on Circuit
  • Auxiliary input for easy interfacing of iPods or other portable audio devices

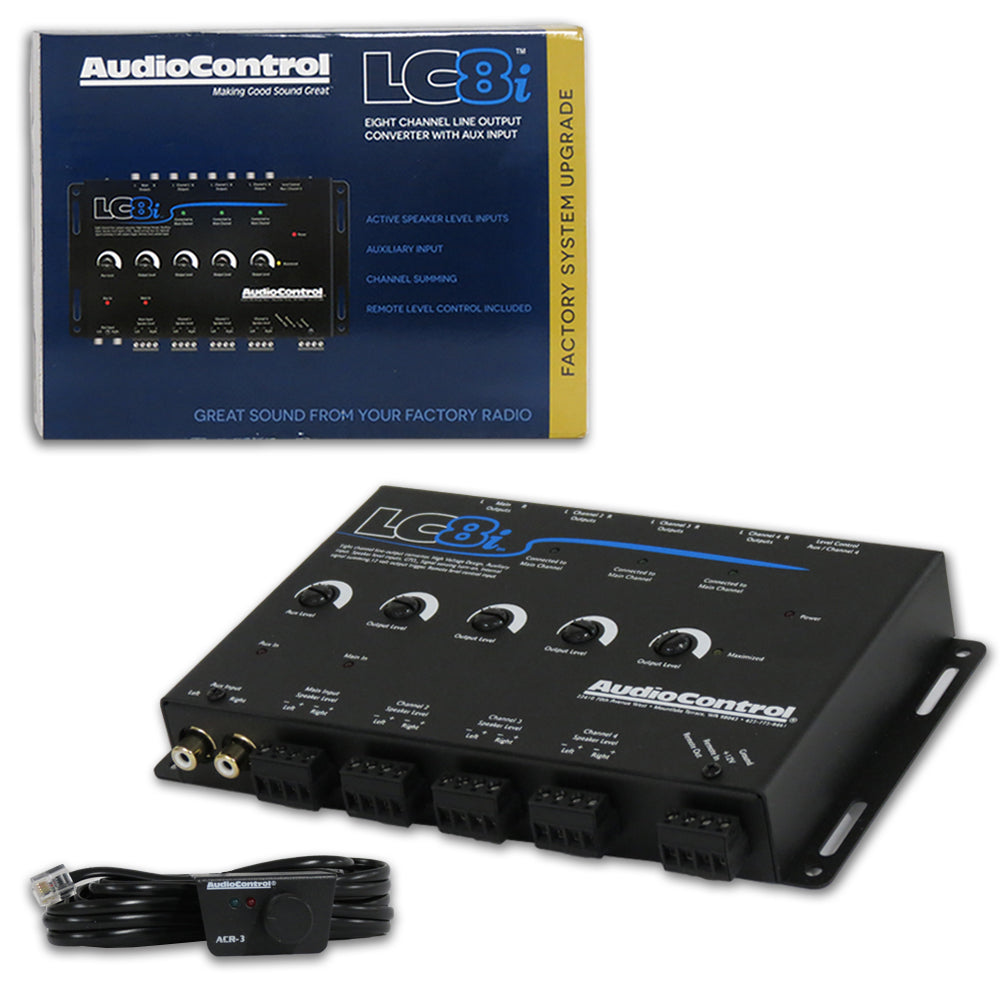

  • ACR-3 Remote Included Level Control and Source Selection
  • Inputs
    • Speaker Level Inputs: 4 (8 channels)
    • Maximum Input (speaker level): 400W per channel at 4Ω
    • Preamp Inputs (Aux): 1 (2 channels)
    • Input Impedance: 20kΩ
  • Outputs
    • Preamp Outputs: 4 (8 channels)
    • Maximum Output Level: 8.5Vrms
    • Output Gain: ±12dB
    • Output Impedance: 150Ω
  • Performance
    • Total Harmonic Distortion: 0.01%
    • Frequency Response: 10Hz-22kHz
  • Control
    • Remote In
    • 12VDC Remote Out (always active when unit is on)
  • General
    • Power Supply: High Headroom PWM Switching
    • Current Draw: 350mA
    • Recommended Fuse Rating: 2A
  • Weights & dimensions
    • Dimensions: 8.6”W x 4.75”D x 1.2”H
    • Weight: 3.0lbs (1.4kg)
