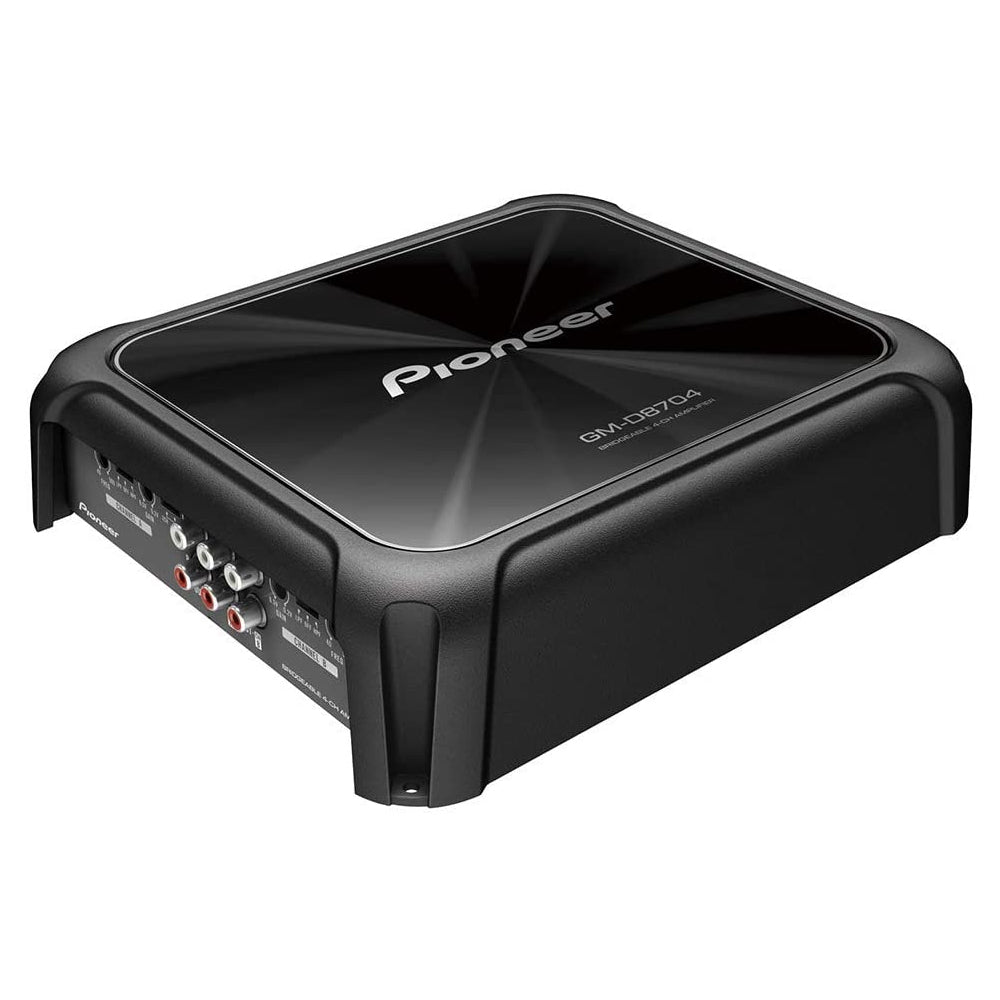

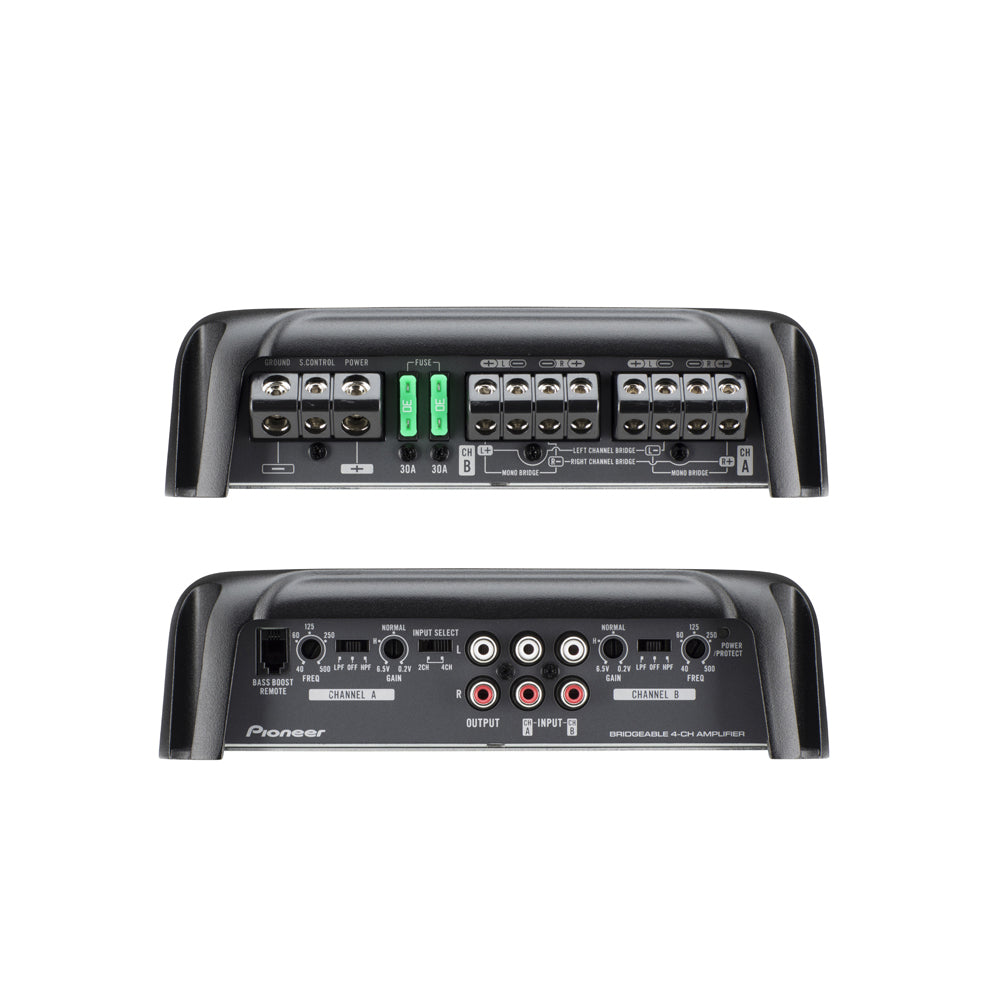

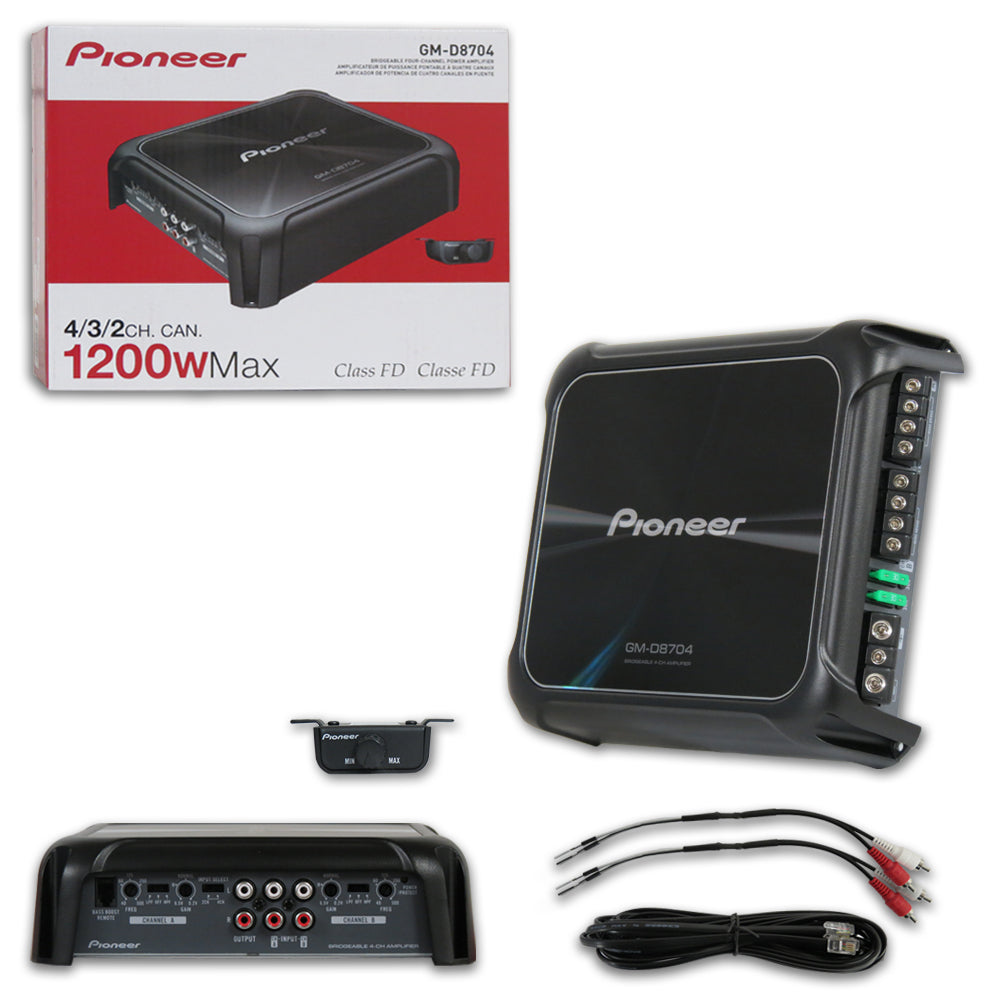

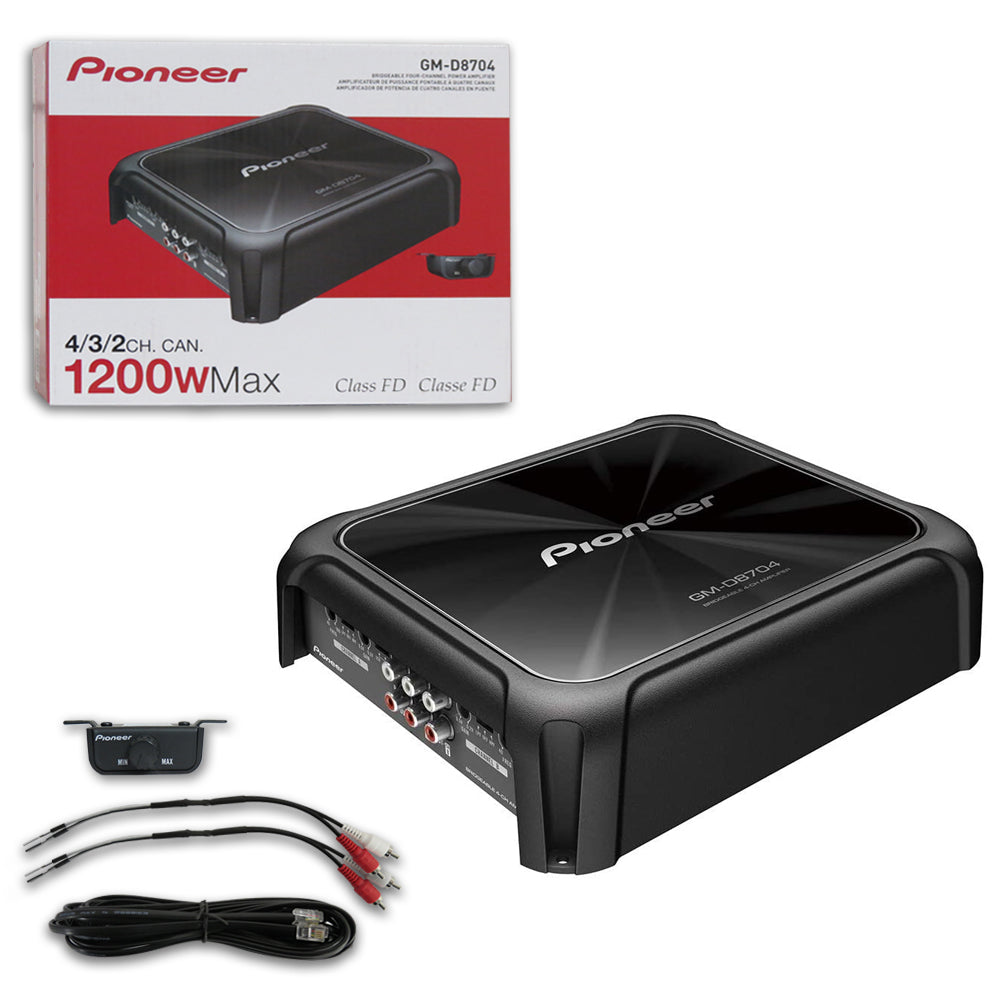

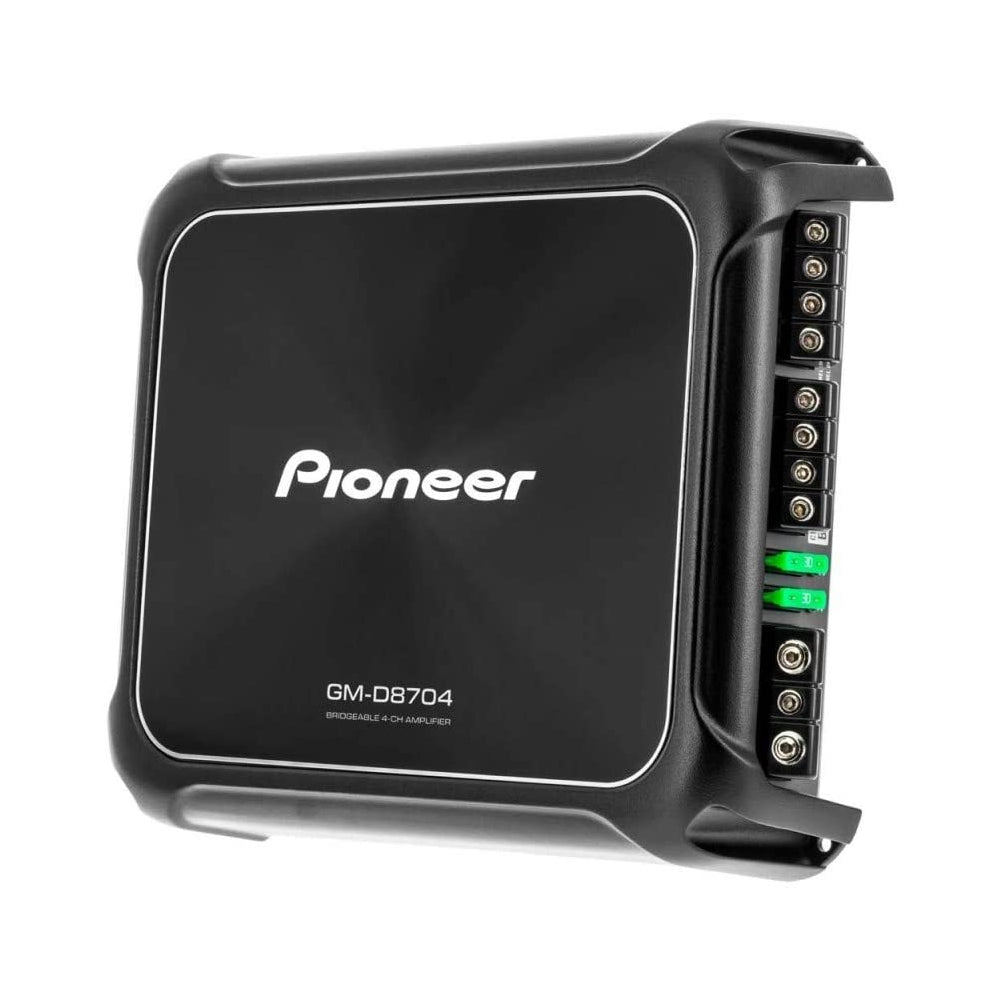

PIONEER GM-D8704 CLASS D 4-CHANNEL BRIDGEABLE CAR AMPLIFIER
Pioneer
- Car Audio 4-channel Class D Amplifier
- Model: GM-D8704 GM Digital Series
- Max Power Rating:
- 4 ohms: 300 watts x 2 channel
- 2 ohms: 150 watts x 4 channel
- 1 ohm: 100 watts x 4 channel
- Max power output: 1200 watts x 1 channel
- High quality textured flat panel and tough frame
- Bass Boost Remote
- Signal-to-Noise (SN) Ratio: > 95 dB
- Total Harmonic Distortion (THD): < 0.05% (1 kHz)
- Low-Pass Crossover Frequency: 40 Hz
- Low Pass Slope (dB/octave): -12dB
- High-Pass Crossover Frequency: 500 Hz
- Bass Boost Frequency: 50 Hz
- Bass Boost Level: 0 dB to 18 dB
- Hi-Volt Input Level Control: 200 mV to 6.5 V
- Load Impedance Allowance: 1 to 8 ohms
- Dimensions: 10-3/8" x 2-3/8" x 7-7/8"
